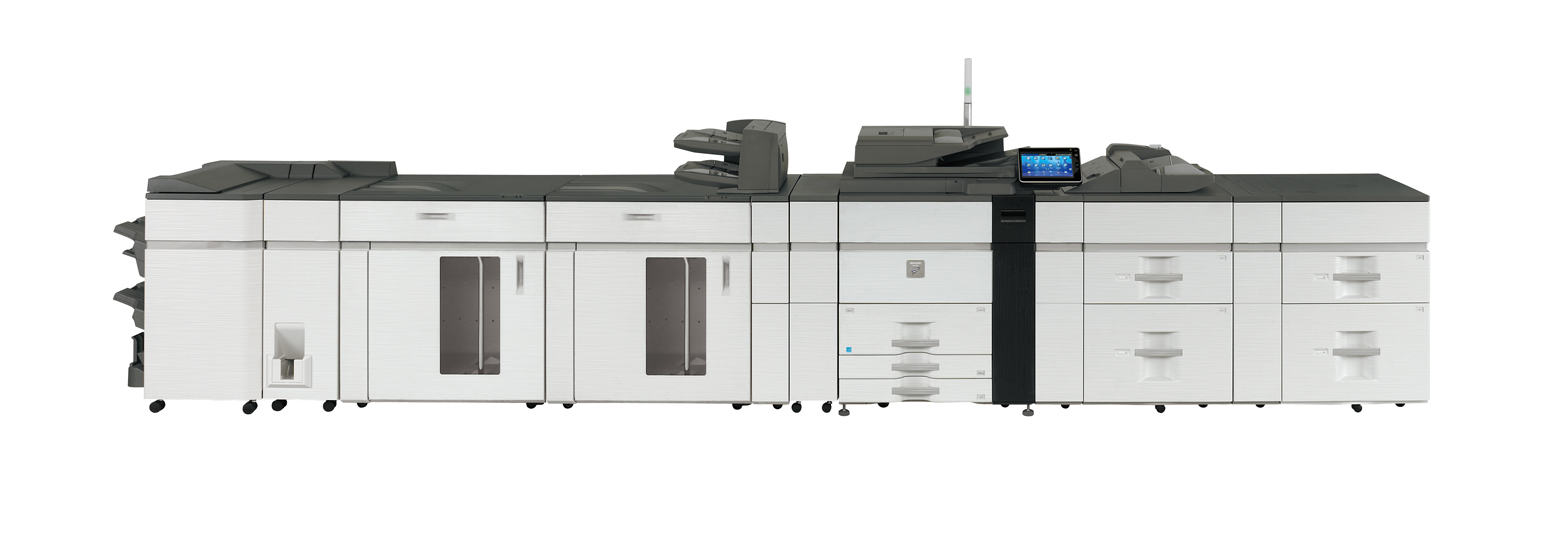

Sharp MX-904

Sharp MX 904 Digital Multifunctional System

  • 90 CPM/PPB print/copy output monochrome
  • 10.1-Inch color LCD touchscreen ,free-titling control panel
  • Duplex copying & printing ,easy printing scanning with USB drives
  • From A5 to SRA3 wide
  • Paper weight 300 GSM even from paper tray
  • Paper capacity 3,100(1200,800,500 x2 +100 multi bypass tray )
  • Memory 5 GB
  • Hard Disk 1 TB
  • High resolution 1200 x 1200 DPI network printing
  • Sharp desk for scanning application for document management
TypeConsole
Engine speedA4 (8 1/2″ x 11″)*1: Max. 90ppm
A3 (11″ x 17″): Max. 47 ppm
SRA3: Max. 43 ppm
Control panel display10.1-inch colour LCD touchscreen
Paper sizeMax. SRA3/A3 wide (12″ x 18″), min. A5 (5 1/2″ x 8 1/2″)*2
Paper capacity
(80 g/m2)
Standard3,100 sheets
(1,200-sheet tray, 800-sheet tray, 500-sheet tray x 2, and 100-sheet multi-bypass tray)
Maximum13,500 sheets
(3,100 sheets & optional 2x 2,500-sheet tray x 2 and 500-sheet multi-bypass tray)
Paper weightTray 1&260 g/m2 to 105 g/m2 (16 lbs bond to 28 lbs bond)
Tray 3&460 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover)
Multi-bypass tray
(MX-MFX1)
52 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)
Multi-bypass tray
(MX-MF11)
52 g/m2 to 220 g/m2 (13 lbs bond to 80 lbs cover)
Large capacity tray
(MX-LC12, MX-LCX3 N)
60 g/m2 to 220 g/m2 (16 lbs bond to 80 lbs cover)
Large capacity trays
(MX-LC13)
52 g/m2 to 300 g/m2 (13 lbs bond to 110 lbs cover)
Warm-up time*3210 sec.
Memory5GB (copy/print shared)    1TB HDD*4
Power requirementsMX-M1204/M1054220?240V / 13A, 50/60Hz
MX-M904220?240V / 10A and 220?240V / 2A, 50/60Hz
Power consumptionMX-M1204/M1054Max. 2.99 kW
MX-M904Max. 2.3 kW + 0.46 kW
Dimensions (W x D x H)1,084 x 790 x 1,237mm (42 3/4″ x 31 1/4″ x 48 3/4″)
Weight (approx.)295 kg (650.4 lbs)

Copier

Original paper sizeMax. A3 (11″ x 17″)
First copy time*5MX-M1204/M10543.2 sec.
MX-M9044.0 sec.
Continuous copyMax. 9,999 copies
ResolutionScan600 x 600 dpi, 600 x 400 dpi, 600 x 300 dpi
Print1200 x 1200 dpi, 600 x 600 dpi
GradationEquivalent to 256 levels
Zoom range25 to 400% (25 to 200% using DSPF) in 1% increments
Preset copy ratiosMetric: 10 ratios (5R/5E), Inch: 8 ratios (4R/4E)

Network Scanner

Scan methodPush scan (via control panel), Pull scan (TWAIN-compliant application)
Scan speed*6Colour & B/WOne-sided: Max. 120 originals/min.
Two-sided: Max. 200 originals/min.
ResolutionPush scan100, 150, 200, 300, 400, 600 dpi
Pull scan75, 100, 150, 200, 300, 400, 600 dpi
50 to 9,600 dpi via user setting
File formatsMonochromeTIFF, PDF, PDF/A, Encrypted PDF, XPS
Colour/greyscaleTIFF, JPEG, PDF, Compact PDF*7, PDF/A, Encrypted PDF, XPS
Scanner utilitySharpdesk
Scan destinationsScan to e-mail/desktop/FTP server/network folder (SMB)/USB memory
Product Enquiry
DOWNLOAD BROCHURE

Note: • Product is subject to availability • Accessories shown in the picture or mentioned herein, if any, are not a part of the standard equipment. • Product design and specification shown here are subject to change or modification without notice, in order to improve reliability, function, design or otherwise. • Contact us today for the latest model.
