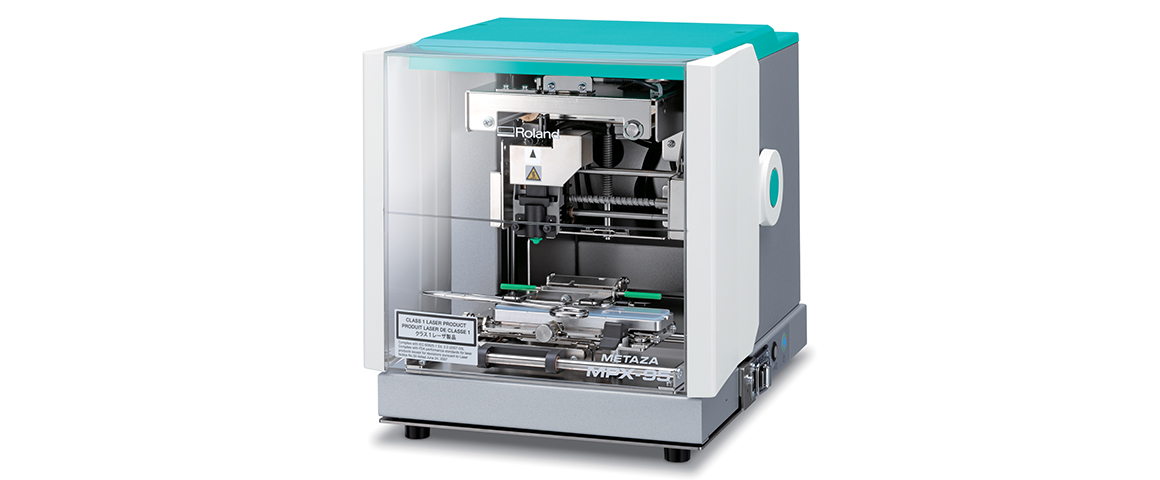

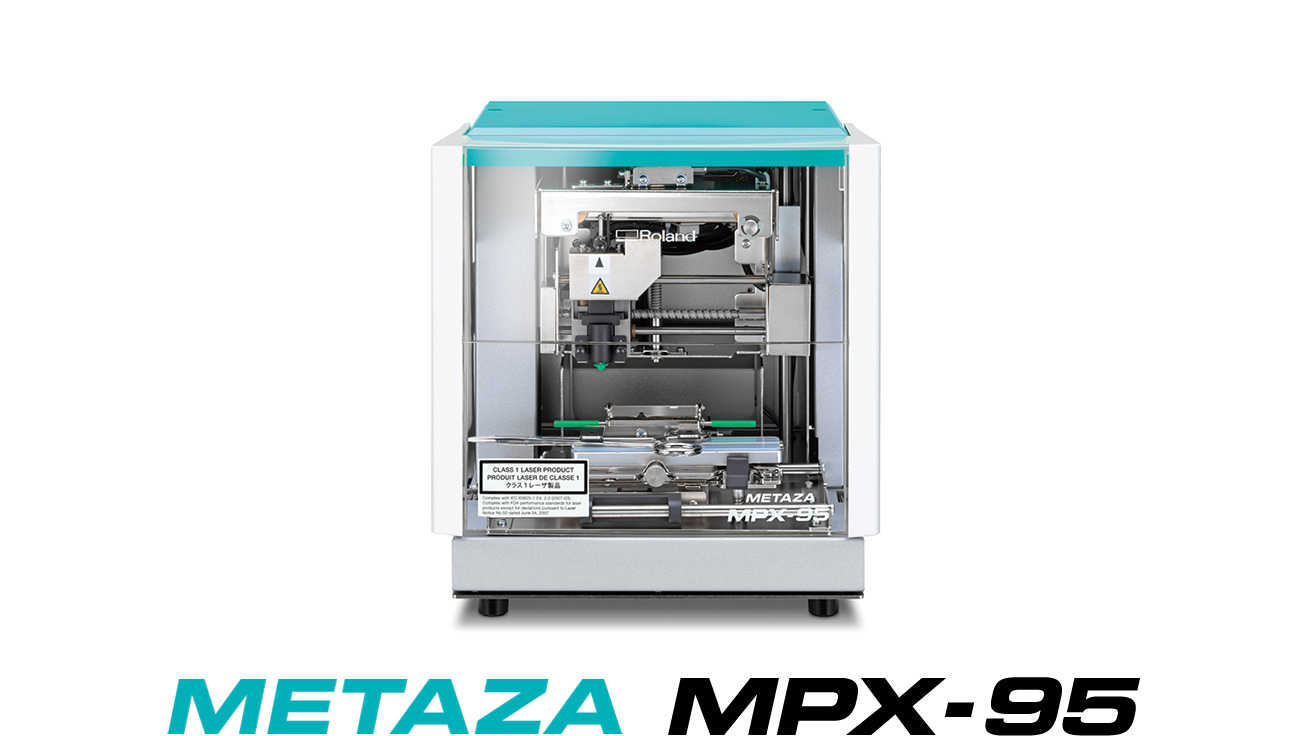

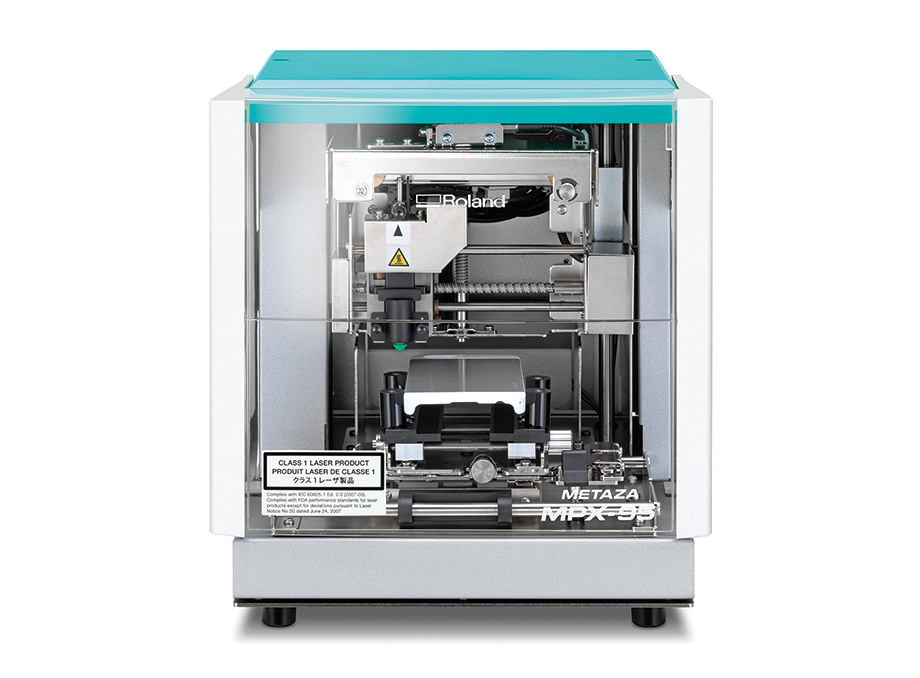

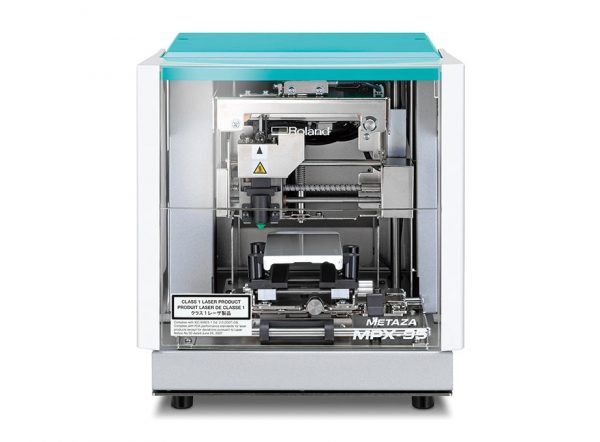

Roland METAZA MPX-95 Photo Impact Printer
Perfect for kiosk and gift shop applications, the new METAZA MPX-95 photo impact printer with gift kit is a low-cost, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable.
|Imprintable material||Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.|
(Vickers hardness [HV] of the imprint surface must be 200 or less.)
|Loadable material size||Using a base table + base plate:||Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H)|
(100 mm (W) X 200 mm (L) X 40 mm (H))
7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H)
(200 mm (W) X 100 mm (L) X 40 mm (H))
|Using a base plate only:||Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H)|
(100 mm (W) X 200 mm (L) X 70 mm (H))
7.9 in. X 3.9 in. X 2.8 in.
(200 mm (W) X 100 mm (L) X 70 mm (H))
*The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area.
|Imprint area||Maximum imprintable area||3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H)|
80 mm (W) X 80 mm (D) X 70 mm (H)
|Recommended imprint area||2.0 in. (W) X 2.0 in. (D) X 2.8 in (H)|
50 mm (W) . 50 mm (D) . 70 mm (H)
|Resolution||High resolution||529 dpi|
|Imprint direction||Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver)|
|Imprint speed (Default)||Photo||2.0 in./sec (50 mm/sec)|
|High resolution/Text||1.2 in./sec (33 mm/sec)|
|Vector||0.94 in./sec (24 mm/sec)|
|External dimensions||11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H)|
286 mm (W) x 383 mm (D) x 308 mm (H)
